MSI B650M GAMING WIFI DDR5

$205.00$349.00

OVERVIEW
SPECIFICATIONS
FAQ

3 YEARS LOCAL DISTRIBUTOR WARRANTY

Corbell Technology Pte Ltd
4012 Ang Mo Kio Ave 10, #06-04 Techplace 1
Singapore 569628
Contact: 6452 4122

KEY FEATURES

Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors

Core Boost: With premium layout and digital power design to support more cores and provide better performance

Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2
CHIPSET:

AMD B650

CPUSupports AMD Ryzen™ 8000/ 7000 Series Desktop Processors

Socket AM5

MEMORY:

2x DDR5, Maximum Memory Capacity 128GB

Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7800+ MHz

• 1DPC 2R Max speed up to 6400+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO™

ONBOARD GRAPHICS:

1x HDMI™

Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT1x PCI-E x16 slot

Supports x16/x1

• Supports x16 (For Ryzen™ 7000 Series processors)

• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)

• Supports x4 (For Ryzen™ 5 8500G processor)

1x PCI-E x1 slot

PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)

STORAGE:

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices

M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices

4x SATA 6G

• M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed

RAID:

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices

USB:

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

3x USB 3.2 Gen1 Type A (Rear)

1x USB 3.2 Gen1 Type C (Rear)

4x USB 3.2 Gen1 Type A (Front)

LAN:

Realtek® RTL8125BG 2.5Gbps LAN

WIRELESS LAN & BLUETOOTH:

AMD Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX

Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIORealtek® ALC897 Codec

7.1-Channel High Definition Audio

INTERNAL IO:

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x Front Type-C Quick Charge Connector(PD_PWR1)

1x CPU Fan

3x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

2x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

4x USB 3.2 Gen1 Type A ports

LED FEATURE:

4x EZ Debug LED

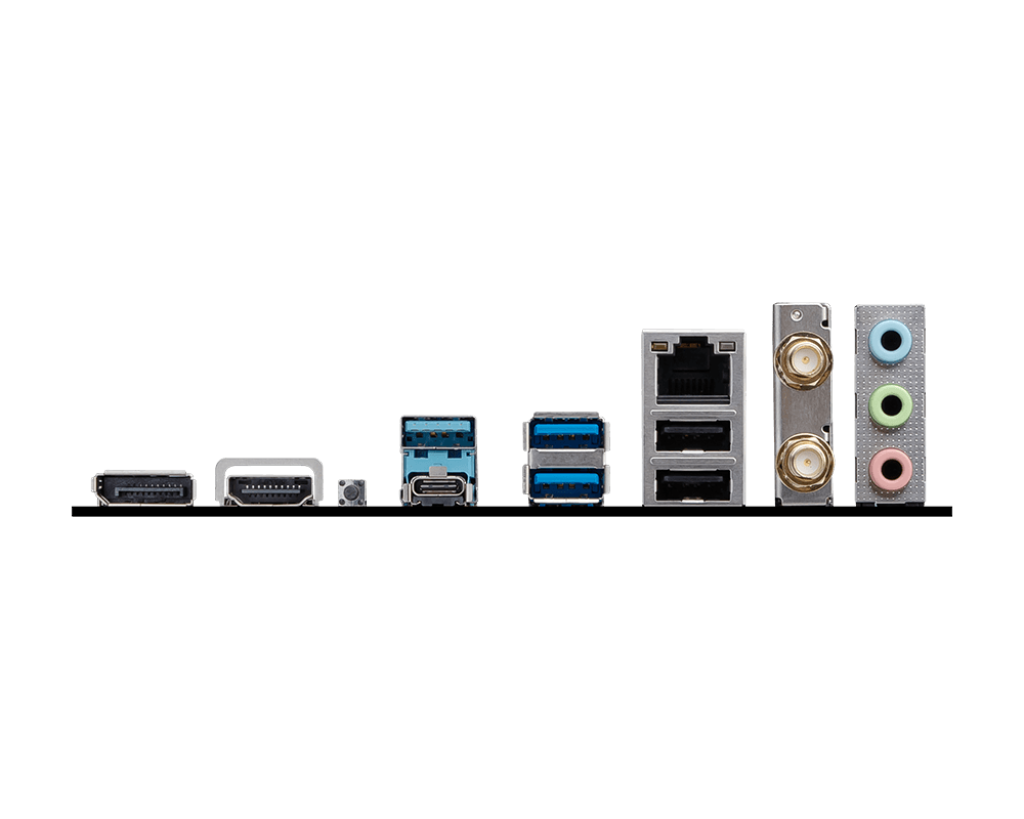

BACK PANEL PORTS:

DisplayPort

HDMI™

USB 3.2 Gen 1 5Gbps (Type-A)

2.5G LAN

Wi-Fi / Bluetooth

Audio connectors

Flash BIOS Button

USB 3.2 Gen 1 5Gbps (Type-C)

USB 3.2 Gen 1 5Gbps (Type-A)

USB 2.0

OPERATING SYSTEM:

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB INFO:

mATX

226mmx243.84mm

Full Specifications Page
