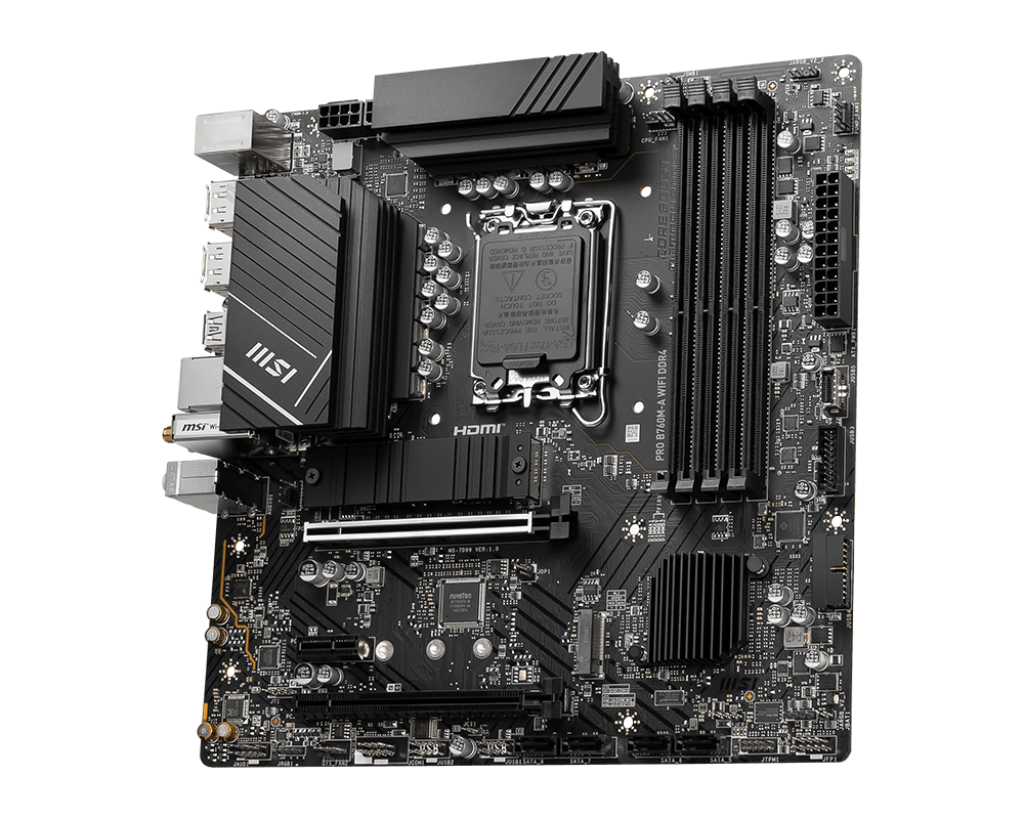

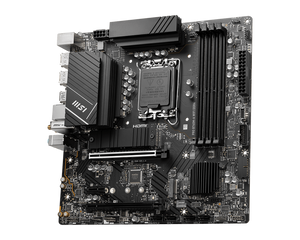

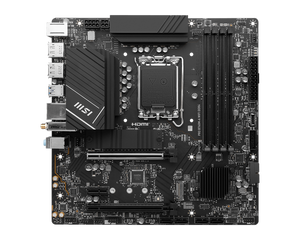

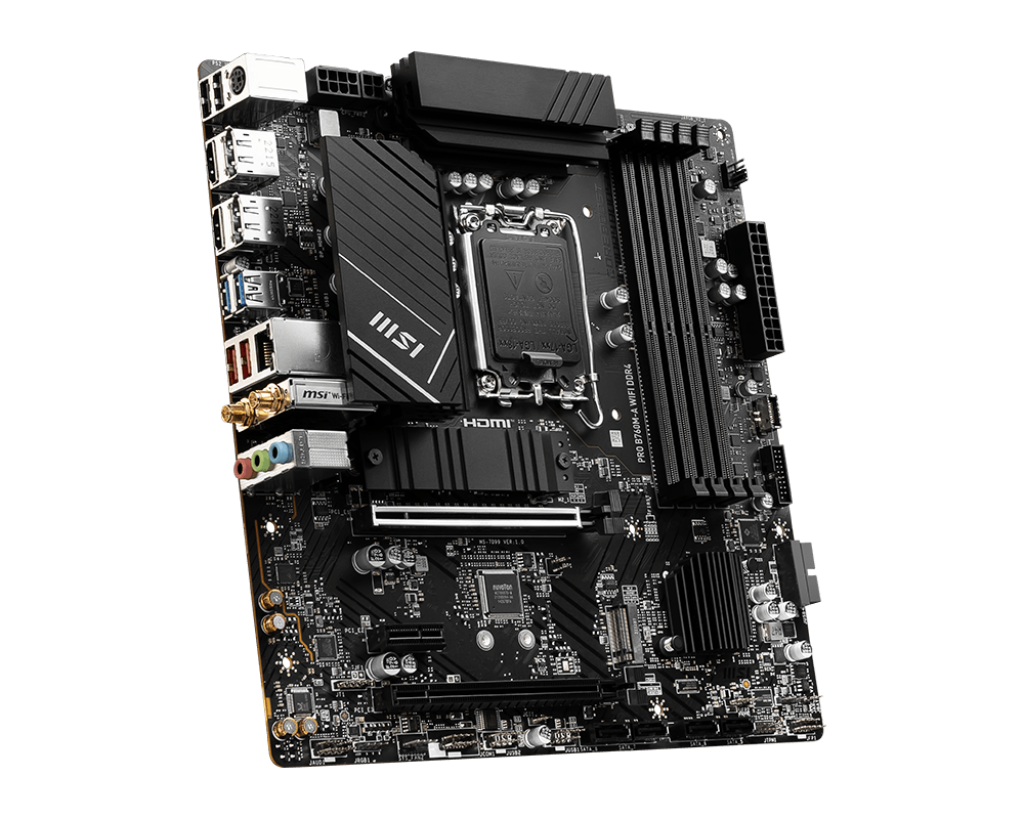

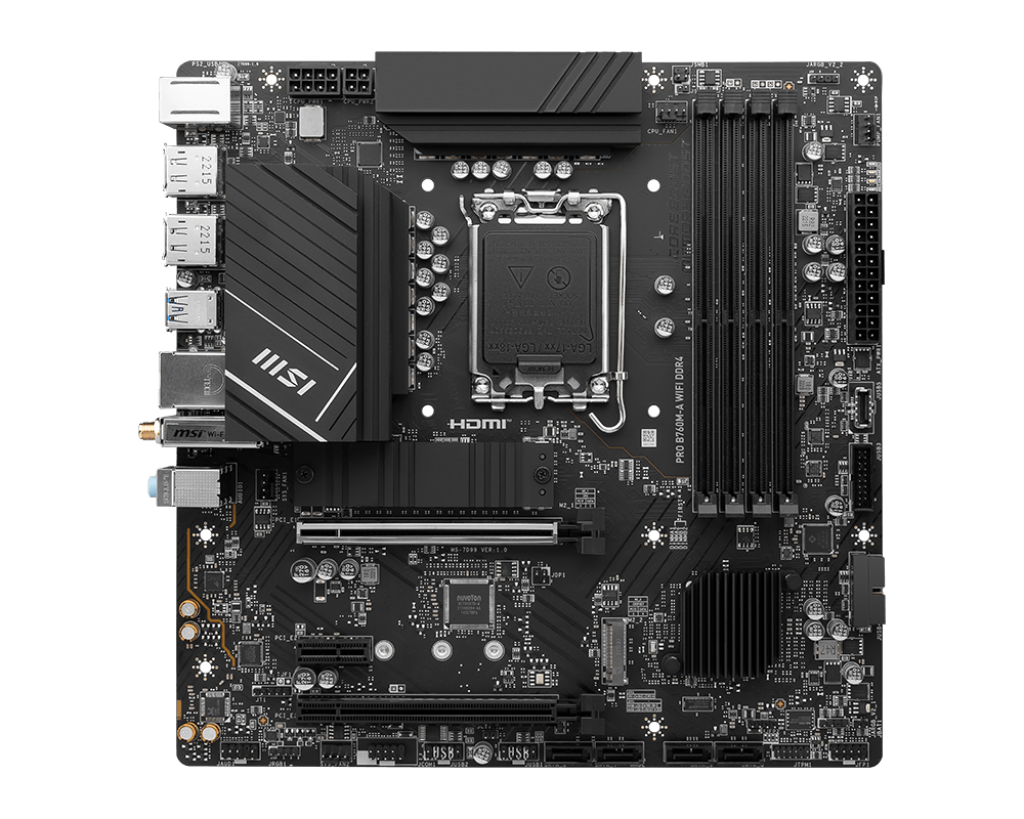

MSI B760M-A PRO WIFI DDR4

$193.00$269.00

Overview
Specifications
FAQs

3 YEARS LOCAL DISTRIBUTOR WARRANTY

Corbell Technology Pte Ltd
4012 Ang Mo Kio Ave 10, #06-04 Techplace 1
Singapore 569628
Contact: 6452 4122

KEY FEATURES

Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience

High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2

Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
CHIPSET:

INTEL B760

CPU SUPPORT:

Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

LGA 1700

MEMORY:

4x DDR4, Maximum Memory Capacity 128GB

Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)

Max. overclocking frequency:

• 1DPC 1R Max speed up to 5333+ MHz

• 1DPC 2R Max speed up to 4800+ MHz

• 2DPC 1R Max speed up to 4400+ MHz

• 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

ONBOARD GRAPHICS:

2x HDMI™

Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

2x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT:

2x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

STORAGE:

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID:

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB:

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Rear)

4x USB 3.2 Gen1 Type A (Front)

1x USB 3.2 Gen1 Type C (Front)

2x USB 3.2 Gen2 Type A (Rear)

LAN:

Realtek® RTL8125BG 2.5G LAN

WIRELESS / BLUETOOTH:

Intel® Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO:

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

INTERNAL I/O:

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

2x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

4x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen1 Type C ports

LED FEATURE:

4x EZ Debug LED

BACK PANEL PORTS:

Keyboard / Mouse

DisplayPort

USB 3.2 Gen 1 5Gbps (Type-A)

2.5G LAN

Wi-Fi / Bluetooth

Audio Connectors

USB 2.0

HDMI™

USB 3.2 Gen 2 10Gbps (Type-A)

OPERATING SYSTEM:

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB DIMENSION (W × L):

mATX

243.84mmx243.84mm

Full Specifications Page
