Panel Size
23.8 inch/60.5 cm
Aspect ratio
16:9
LCD panel type
IPS technology
Backlight type
W-LED system
Pixel pitch
0.275 x 0.275 mm
Optimum resolution
1920 x 1080 @ 60 Hz
Brightness
250 cd/m²
Display colours
16.7 M
Colour gamut (typical)
NTSC 72% (CIE 1931)
Contrast ratio (typical)
1000:1
SmartContrast
50,000,000:1
Response time (typical)
5 ms (Grey to Grey)*
Viewing angle
178º (H)/178º (V)
@ C/R > 10
Picture enhancement
SmartImage
Effective viewing area
527 (H) x 296.5 (V)
Scanning Frequency
30–85 kHz (H) / 48–75 Hz (V)
sRGB
Yes
Flicker-free
Yes
Pixel Density
93 PPI
LowBlue Mode
Yes
EasyRead
Yes
Ingress protection
IP65 - front only
Operating system
Windows 10 / 8.1 / 8 / 7; Android 7.1 / 7.0 / 6.0 / 5.0 / 4.4; certain Linux versions*
Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
Touch active area
527 mm (H) x 296.5 mm (V)
Touch glass hardness
7 H
Touch interface
USB
Touch method
Stylus, Finger, Glove*
Touchpoints
10 points
Touch technology
Projected capacitive
Palm rejection area
>= 30 x 30 mm
Touch glass coating
Glare

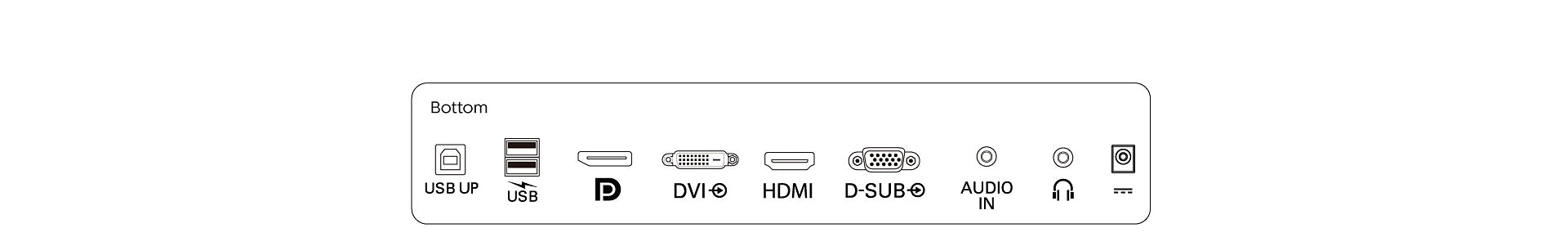

Signal Input
VGA (Analogue)
DVI-D (digital, HDCP)
DisplayPort 1.2
HDMI 1.4
USB
USB 3.1 x 2 (1 w/fast charging)*
Sync Input
Separate Sync
Sync on Green
Audio (In/Out)
PC audio-in
Headphone out
HDCP
HDCP: HDCP 1.4 (HDMI/DP/DVI)
Built-in Speakers
2 W x 2
Plug and Play Compatibility
DDC/CI
sRGB
Windows 10 / 8.1 / 8 / 7
User convenience
SmartImage
Input
Brightness
Menu
Power On/Off
Other convenience
Kensington lock
VESA mount (100 x 100 mm)
Control software
SmartControl
Height adjustment
184 (Horizontal), 75 (Vertical) mm

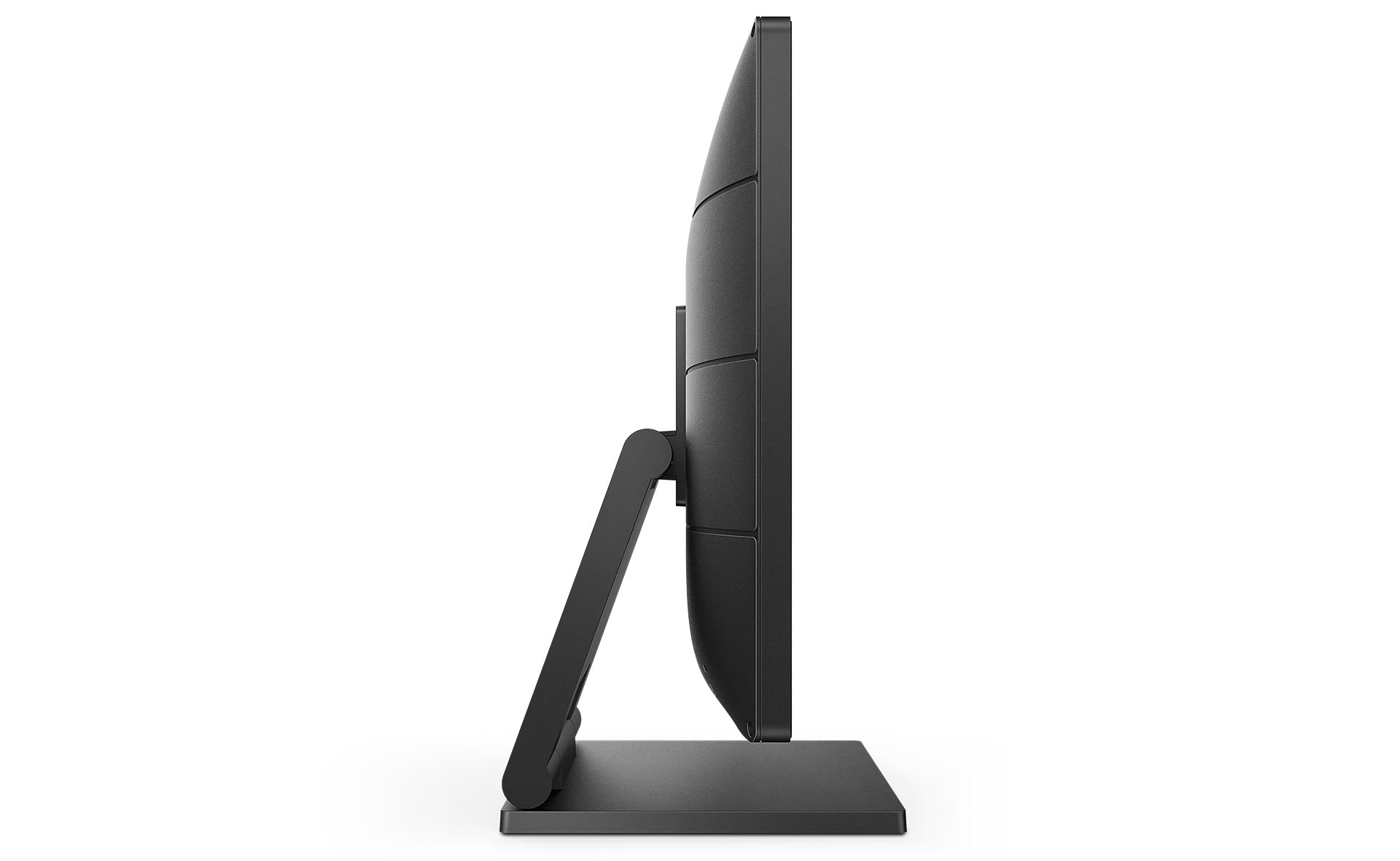

Tilt
-5–90 degree
Folding angle
0–70 degrees
ECO mode
11.5 W (typ.)
Power supply
External
100–240 VAC, 50–60 Hz
Off mode
< 0.3 W (typ.)
On mode
15.68 W (typ.) (EnergyStar test method)
Standby mode
< 0.5 W (typ.)
Power LED indicator
Operation - White
Standby mode - White (flashing)
Energy Label Class
E
Packaging in mm (W x H x D)
620 x 433 x 168 mm
Product without stand (mm)
554 x 338 x 50 mm
Product with stand (max height)
554 x 413 x 227 mm
Product with packaging (kg)
11.06 kg
Product with stand (kg)
8.15 kg
Product without stand (kg)
4.86 kg
Altitude
Operation: +12,000 ft (3658 m), Non-operation: +40,000 ft (12,192 m)
Temperature range (operation)
0°C to 40°C °C
Relative humidity
20%-80 %
Temperature range (storage)
-20°C to 60°C °C
MTBF (demonstrated)
70,000 hrs (excluded backlight)
Environmental and energy
EnergyStar 8.0
EPEAT*
TCO Certified
RoHS
WEEE
Recyclable packaging material
100 %
Specific Substances
PVC/BFR free housing
Mercury free
Regulatory Approvals
CB
CE Mark
FCC Class B
SEMKO
UKRAINIAN
ICES-003
TUV/GS
TUV Ergo
CU-EAC
EAEU RoHS
cETLus
