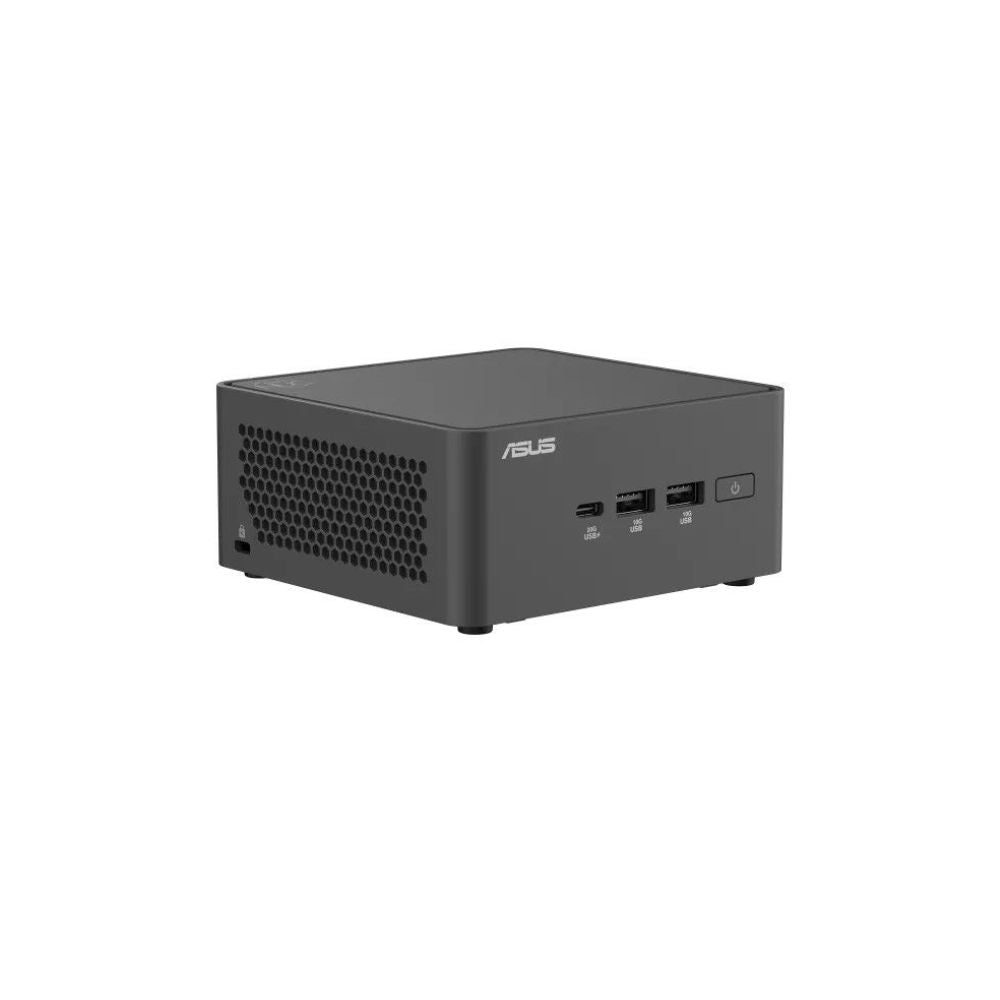

ASUS NUC 15 Pro Tall U5-225H Mini PC

ASUS NUC 15 Pro Tall is a palm-sized mini PC with an Intel Core Ultra 5 225H, 16GB of DDR5 and a 512GB SSD, with Windows 11 Pro installed. It suits a tidy home office or study desk, and a VESA bracket is in the box. It has a 3-year ASUS warranty with onsite service.

Who it suits

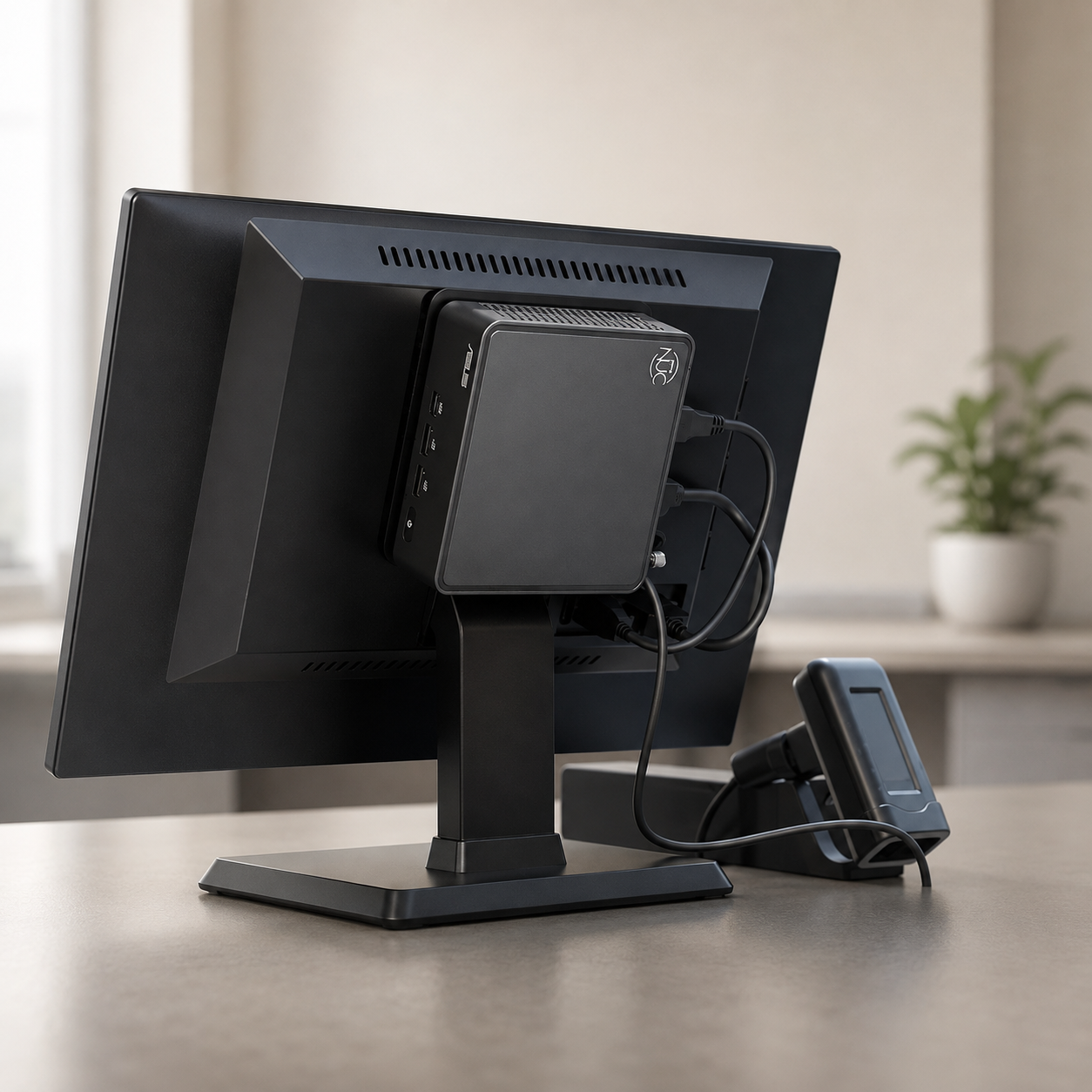

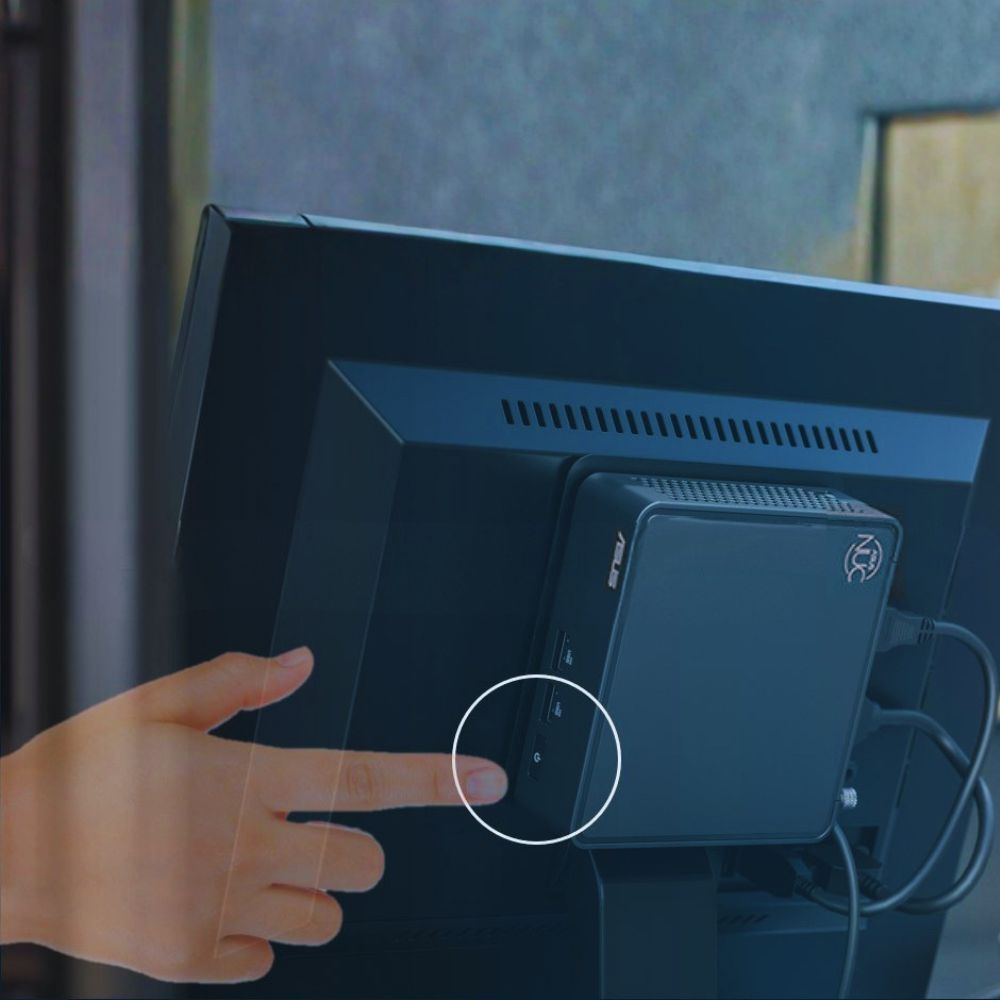

• A compact office or study PC: Windows 11 Pro, 16GB DDR5 and a 512GB SSD are installed, and the VESA bracket lets you mount it behind a monitor.
• Drives up to four 4K displays from 2 x HDMI 2.1 and 2 x Thunderbolt 4 ports, which suits a multi-screen work desk.

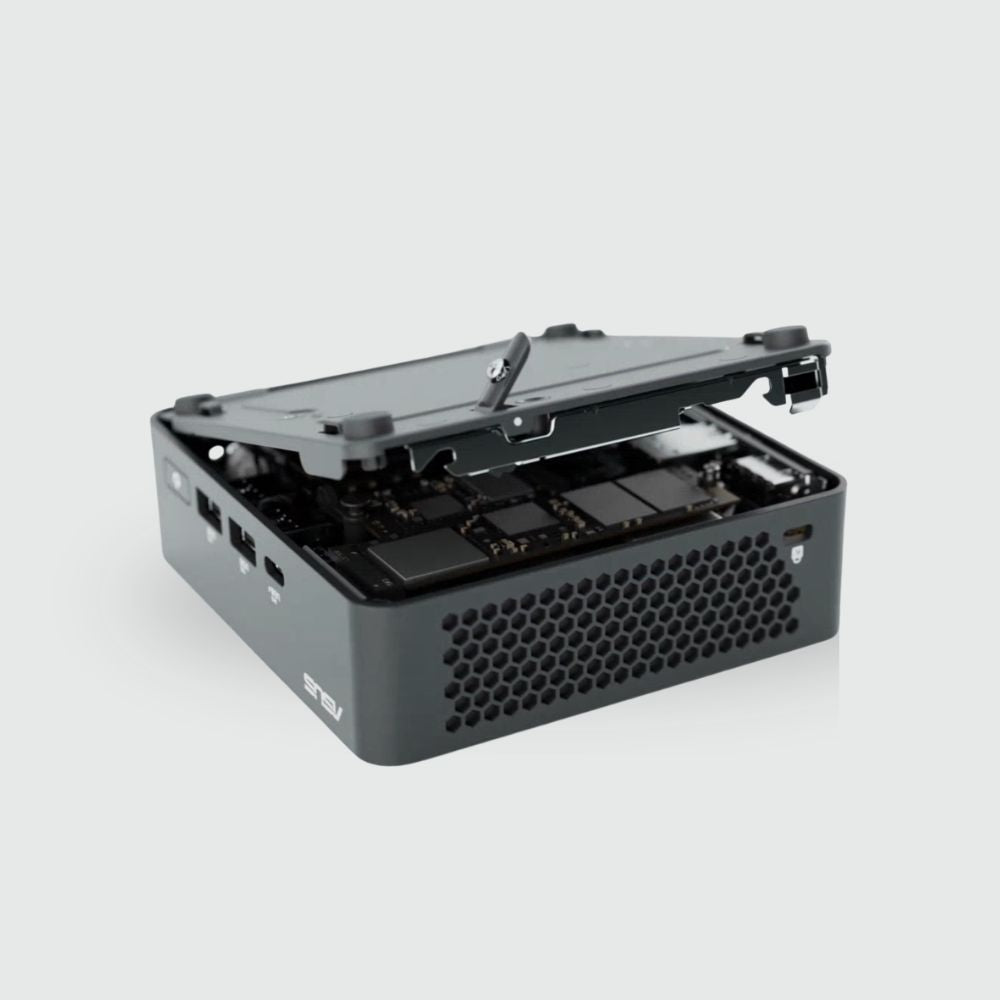

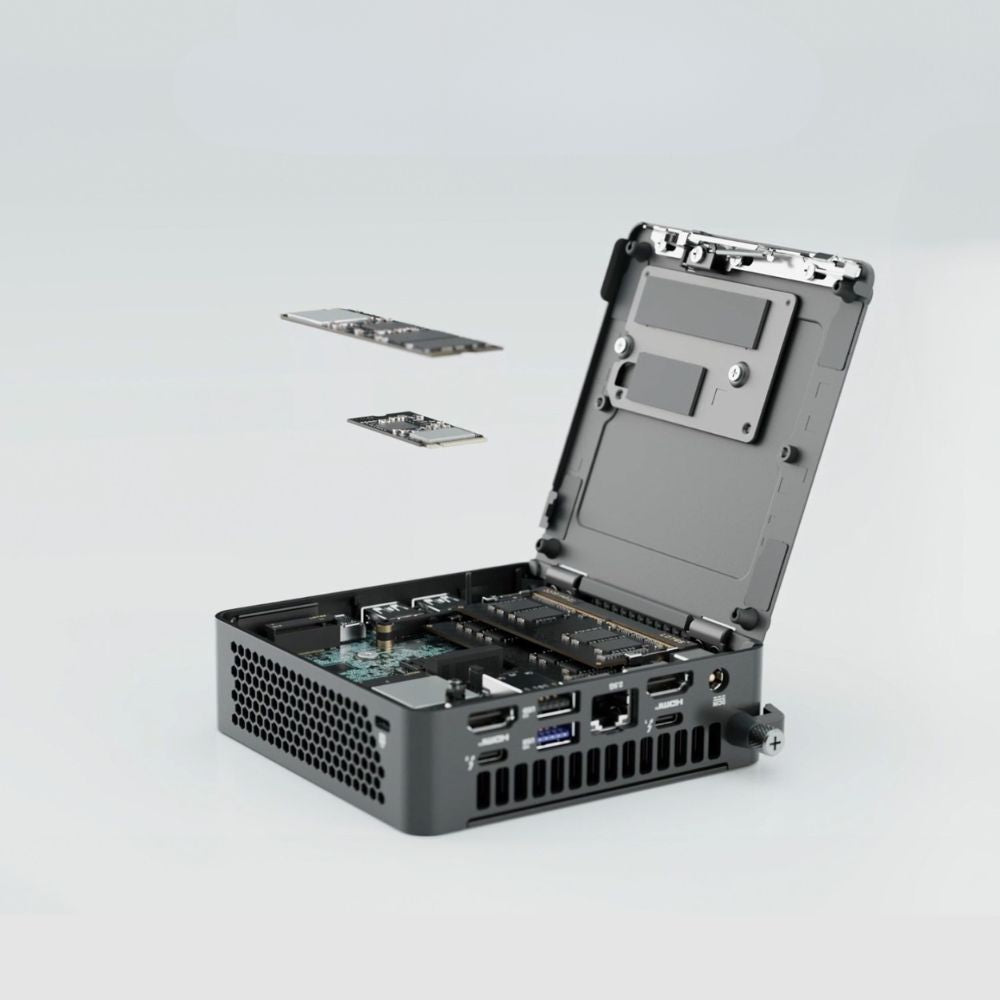

• Room to grow: two M.2 slots and two memory slots let you add storage and memory later, up to 48GB per slot.
• Suitable for everyday productivity, media use and lighter gaming, but it is not intended as a replacement for a dedicated-GPU gaming PC or heavy 3D workstation.

Before you buy

• If you upgrade the memory, keep two modules installed. ASUS states that Intel Arc Graphics requires 2 × SO-DIMM modules.
• Storage slots: one M.2 2280 slot (PCIe Gen 5 ready) and one M.2 2242 slot (PCIe Gen4x4). The 512GB drive installed is PCIe Gen4.

Model
NUC 15 Pro Tall (RNUC15CRHU5063C1)

Operating System
Windows 11 Pro (64-bit)

Processor
Intel Core Ultra 5 Processor 225H 1.7 GHz (18MB Cache, up to 4.9 GHz, 14 cores, 16 threads)

NPU
Intel AI Boost NPU up to 13 TOPs

Graphics
Intel Arc Graphics

Memory (installed)
8GB x 2 DDR5-5600

Memory (upgradeable)
2 x CSO-DIMM Slots, Up to DDR5-6400, 48GB x 2

Storage (installed)
512GB M.2 2280 NVMe PCIe Gen4 SSD

Storage (upgradeable)
1 × M.2 2280 PCIe Gen4x4 slot, supports 128GB–2TB NVMe SSD
1 × M.2 2242 PCIe Gen4x4 slot, supports 128GB–2TB NVMe SSD
PCIe Gen 5 ready design

Wireless
Intel Wi-Fi 7, Bluetooth 5.4

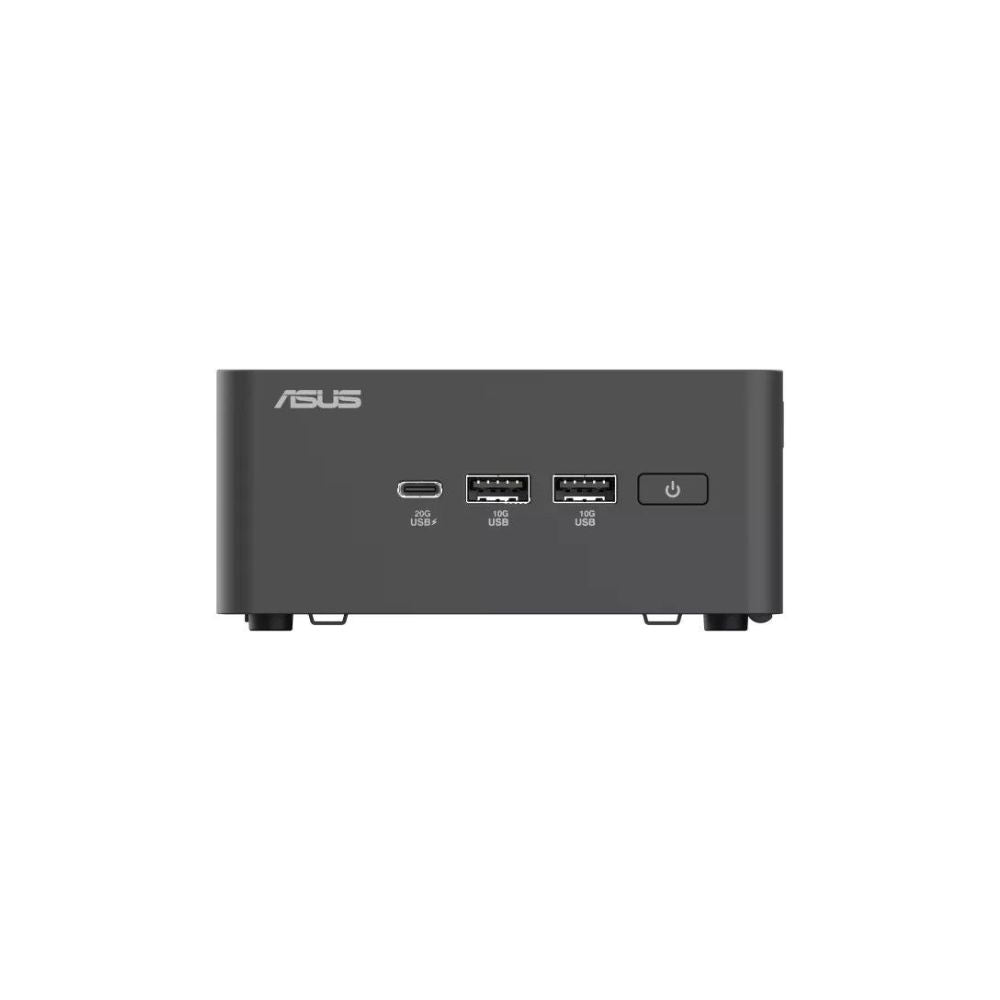

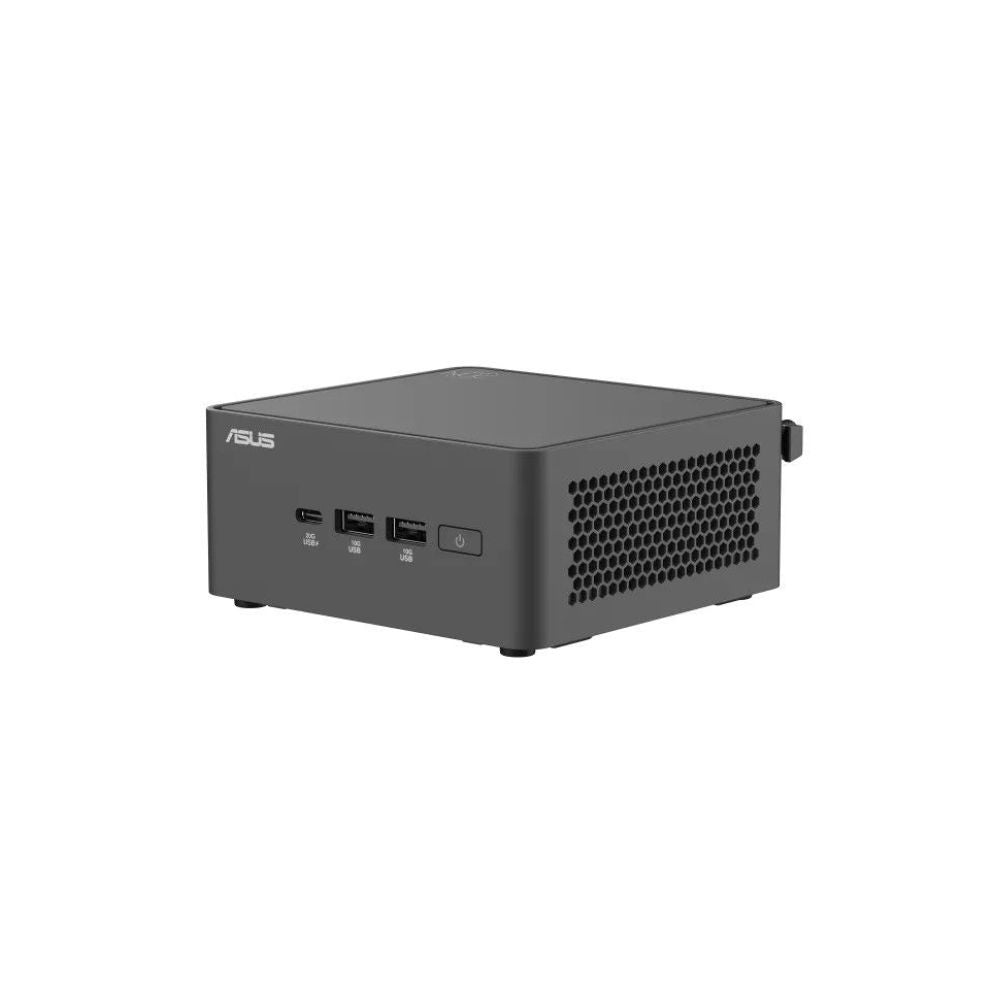

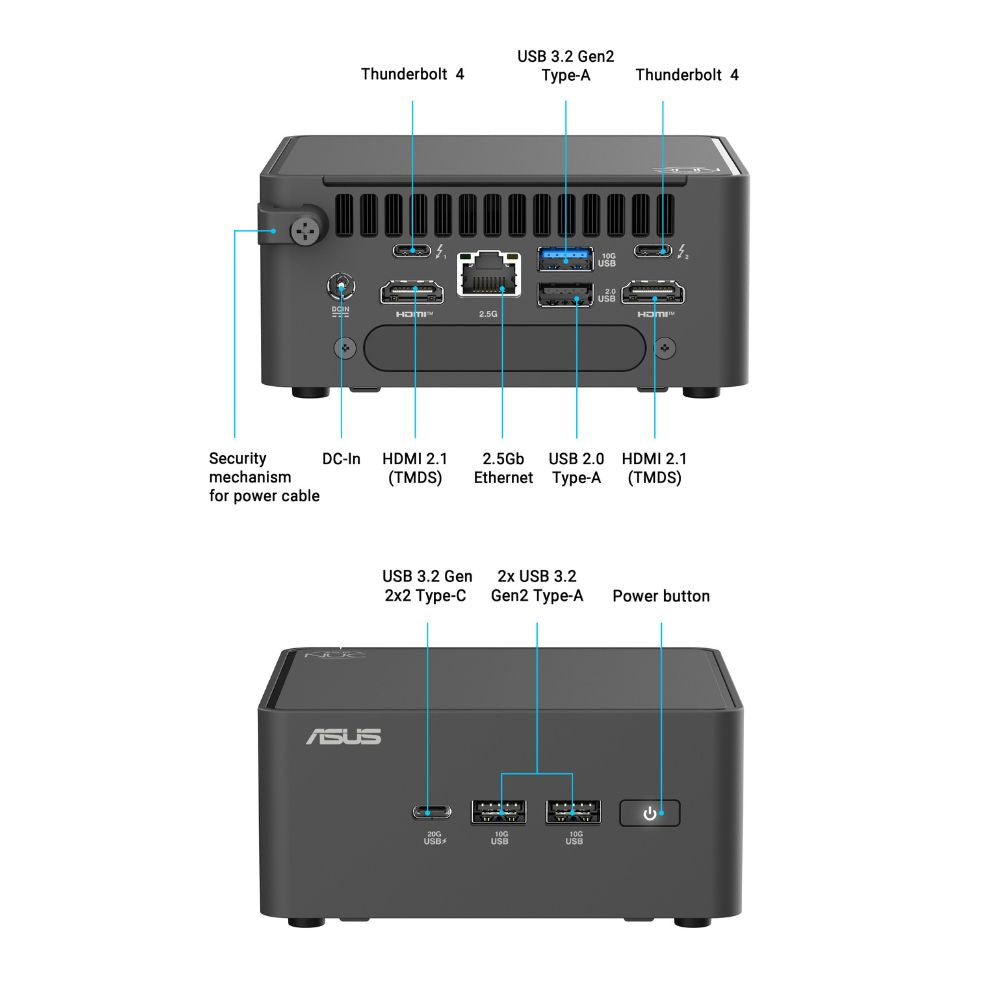

Front (Side) Ports
1 x USB 3.2 Gen2x2 Type-C, 2 x USB 3.2 Gen2 Type-A, 1 x Kensington Lock

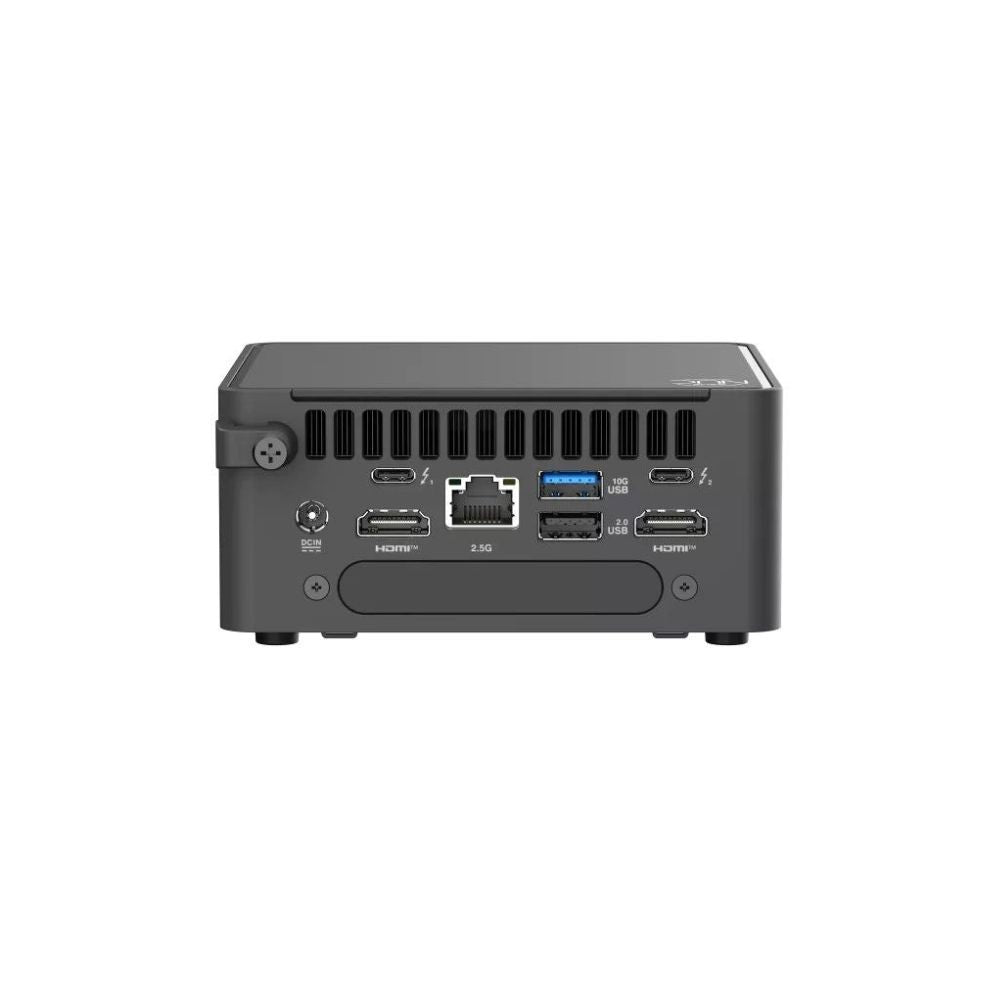

Back Ports
2 x HDMI 2.1 TMDS (4K@60Hz), 2 x Thunderbolt 4 (DP 2.1 and USB4), 1 x USB 3.2 Gen2 Type-A, 1 x USB 2.0 Type-A, 1 x RJ45 LAN, 1 x DC-in

Power Adapter
19VDC, 6.32A, 120W

Dimensions
112 × 54 × 117 mm

Weight
1.3

Colour
Black

In the Box
AC adapter, VESA bracket and screws, cable clip, warranty card

3 YEARS WARRANTY (On Site)

Ban Leong Technologies Ltd
150, #04-01 Ubi Ave 4, Ubi Biz-Hub,
Singapore 408825
Contact: 6512 9250

How long will it take to receive my purchase?

Standard Shipping - 3 to 5 days
Express Shipping - 1 to 2 days

Can I opt for store pickup?

Yes, we are open daily for collection from 11 AM - 6.30 PM.
Address: 1 Ubi View #01-22, Focus One Building Singapore 408555 (Door located nearest to carpark exit gantry) We will contact you once your order is ready for collection!

Does the NUC 15 Pro Tall come with a power cord?

ASUS's store page lists an AC adapter only and says the power cord is shipped separately.

Can I upgrade the memory and storage later?

Yes. It has two memory slots and two M.2 slots. Keep both memory slots populated for Intel Arc Graphics.
